Fuji 2202 Paint Sprayer Review
Editor Rating: 4.5/5

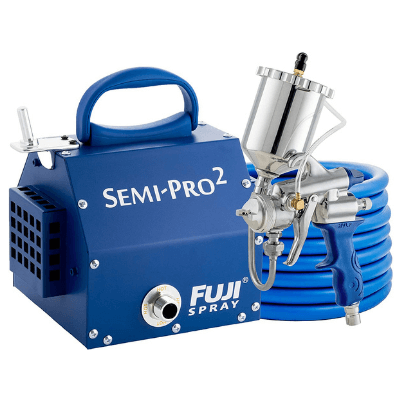

Fuji 2202 Paint Sprayer
Reviewed by: Timothy Henderson
Fuji Semi-Pro 2 Review Summary:
Before we get into the details in this Fuji 2202 Paint Sprayer review, here’s a brief roundup.
This model is part of the DIY-PRO series — the range is aimed at a wide spectrum of users — from the newcomers to DIY across the board to the dedicated enthusiast.
The Fuji 2202 is designed to deliver smoothly painted projects that look professional in less time. This includes painting walls, ceilings, or furniture and fencing. Its mighty 1400 watt two-stage turbine pumps out 5 PSI — paving the way for a wide variety of mediums — including those with a high viscosity.
Furthermore, it includes a 25-foot flexible hose for greater maneuverability — saving you time from moving the unit too frequently.
You’ll find everything you need to get started — a turbine within a metal carry-case, 25-foot hose, spray gun, 1-quart paint cup, 1.3mm air cap set, viscosity cup, cleaning brush and user manual.
Fuji Spray has been designing HVLP systems for professionals, DIYers, and hobbyists for over 30 years. All products are manufactured using Canadian technology.
Features and Benefits of Fuji 2202 Semi-PRO 2 HVLP Spray System
M-Model Spray Gun
This feature could quite possibly be one of the most notable of the Fuji 2202. Although this unit includes a spray gun with bottom-feed ability as standard, it can also be converted into a gravity-fed alternative. This makes it easier to accomplish all kinds of projects.
Kits can be purchased additionally for conversion — (part #9960 is required to convert from bottom feed to gravity feed).
The M-Model is designed for use with several sized air caps. The factory-installed option is 1.3mm, but others can be incorporated to accommodate different viscosities of liquids. The needle is stainless steel, as are the fluid passages.
The M-Model spray gun is also made from metal — many competing models use plastic. This means it’s likely to withstand knocks and drops better than its counterparts.
Fuji has provided a lengthy 25-foot flexible hose that lets you move around freely with the spray gun — without hauling the entire unit around. Reaching corners and edges should be straightforward — eliminating the hassle of moving the base unit frequently.
As a result, the time spent on your spraying projects will drop — meaning you’ll be able to fit in that ball game you wanted to catch on TV.
The hose also includes a valve to control airflow, which reduces overspray and saves you wasting precious resources — and money. Additionally, thanks to the Quick Connect feature — there shouldn’t be any struggle to attach the hose to the unit.
Cleaning and Maintenance
No one likes the cleanup portion of a project, but it’s simple with the Fuji 2202. It doesn’t contain a multitude of individual parts — making disassembly a straightforward affair.
If you’re utilizing water-based liquids or latex paint, all you need is soapy water and a rag. Run the water through the hose, and use the rag to wipe the connections and casing. If you’re using oil-based products, you’ll need mineral spirits to clean the spray system thoroughly.
Multiple Spray Patterns
The Fuji 2202 includes a knob for adjusting the spray pattern. You can start with a small diameter and increase it as needed. The width can be adjusted from 1-inch to 12 inches — helping to meet your exact needs dependent on the size of the project.
You can also switch the nozzle to spray either vertically (up and down), horizontally (side-to-side) and at a 45-degree angle to create a round pattern for intricate work. This should help you achieve an even coverage and that professional-looking finish.
1-Quart Aluminum Pressurized Cup
The 1-quart aluminum cup is larger than most provided with paint sprayers — allowing you to paint for longer before having to make a painting pit stop to refill. It’s also manufactured from aluminum, which is both durable and lightweight — helping to prevent arm fatigue.
1400 Watt Motor
According to Fuji, this is one of the most powerful motors available for an HVLP (high-volume low-pressure) paint sprayer. The two-stage motor means that denser liquids, such as latex paint, can be used with this sprayer. You’ll be able to accomplish projects easily with the output this motor provides.
What Users Say About The Fuji Semi-Pro 2
The Fuji 2202 Semi-PRO 2 HVLP Spray System strikes me as a fitting product for medium to large-size projects. It produces smooth, even coverage, and it’s so much faster than relying on a paint brush or roller. However, that’s just my personal viewpoint.
To give you a better idea of what actual users think, I’ve delved into other reviews to see what they say about this paint spray system.
DIY lovers — love it.
Many note that getting started with it is very straightforward, although it’s worth highlighting that most users are not complete novices. Plus, there’s always a slight paint sprayer learning curve for the newcomer.
It’s accurate, and produces results that look professional and smooth. Coverage is even, and overspray is minimal. Users also recommend the viscosity cup to help achieve the desired liquid thickness — particularly, if you’re using the 1.3mm air cap.
The hose is robust and durable — but flexible. It’s long enough that the base unit can be left outside a room. This could counteract the fact that many users have commented that the unit is very loud and noisy.
However, the one recurring negative with the Fuji 2202 is how much it will hit your wallet. It has a higher price point than some other HPLV paint sprayers in the same class.
Alternatives to Fuji 2202 Paint Sprayer
Even though you’ve seen all the good points in this Fuji 2202 review, perhaps this model isn’t exactly pushing your paint spraying buttons. I’ve got some suggestions that might offer up alternatives for you.
- Less of a budget-blower than the Fuji spray system.
- Incorporates a plastic carry case, unlike the metal version on the 2202.
- 11.5-foot flexible hose is considerably shorter than the 25-foot Fuji.
- Features a power output of 650 watts, less than the 1400 watts of the Fuji sprayer.
- Like the Fuji 2202 — you can switch between three spray patterns.
- Also includes a 1-quart container.
- High-pressure power allows for spraying unthinned paints.
- Unlike the Fuji, the Graco can spray directly from the paint container.
- The X5 can support up to 75 feet of paint hose as opposed to the 25 feet of the Fuji — providing a much larger reach.
The Fuji 2202 Semi-PRO 2 HVLP Spray System is a solid unit that delivers quality painted, stained, or refinished projects. It’s uncomplicated to use, although, admittedly it may be a little overkill for the complete novice.
The 25-foot hose means you don’t have to carry the entire unit around — ensuring you can reach every speck of surface. The Fuji 2202 can also accommodate a variety of liquids, but the use of thicker paints may require a different air cap size.
It’s suitable for small to medium-size projects — thanks to the 1400 watt motor providing plenty of power. However, if you have a large project to contend with, you may wish to consider the Wagner FLEXiO 890.
Granted, this spray system has a higher price tag than some other comparable models. However, this Fuji 2202 Paint Sprayer Review has shown that it’s a premium product that rises to many occasions.
Fuji 2202 FAQs
What Is the Psi Rating for the Fuji 2202 Semi-Pro 2 HVLP Spray System?
Can the Fuji 2202 Be Used With Oil-Based Paints?
Can I Use the Fuji 2202 Semi-Pro 2 Hvlp Spray System to Paint Automobiles?
How Can I Fix My Fuji 2202?
If your machine isn’t functioning at optimum levels, in the first instance check out my Fuji Troubleshooting guide.
Can the Fuji 2202 Be Used for Spray Tanning?
What Is the Current Price of the Fuji 2202?
The Fuji 2202 is ideal for painting shutters, fences, and other items around the house. To see the current price, take a look here.
